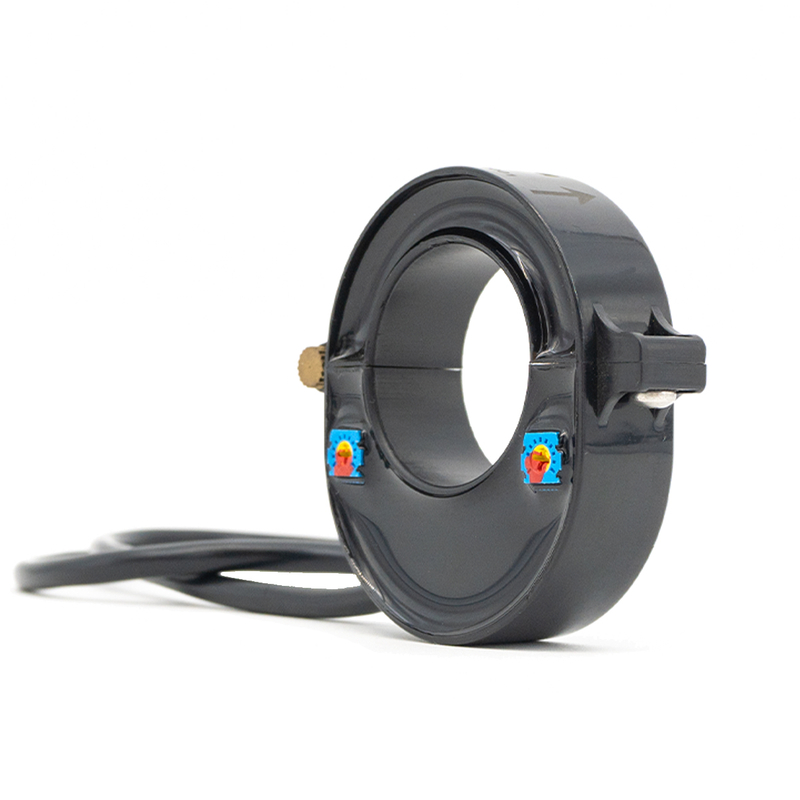

MEASURE THE ARBIRARY WAVEFORM CURRENT ,SUCH AS DC AC ,TRANSIENT PEAK ,PAMMETERS MEASUREMENT .BETTER LINEARITY ,
GOOD DYNAMIC PERFPRMANCE WORKING HANDWIDE ,STRONG OVERLOAD ABILITY ,
Used in electric power, industrial automation, machinery, automotive, home appliances and other industries and fields
The magnetic field generated by the primary current Ip flowing through the conductor is concentrated in the magnetic ring. The magnitude of this magnetic field is proportional to the current flowing through the conductor. The Hall element in the magnetic ring air gap measures and amplifies the output, and the output voltage Vs is reflecting the primary current Ipo accurately.
Highly insulated between the primary and secondary side
Small size ,light weight
No insertion loss ,low power consumption
Wide detection range
| Specification | 100A/4V | 200A/4V | 400A/4V | Unit | |
| IPN | Primary Rated Input Current | 100 | 200 | 400 | A |
| IP | Primary Current Measurement Range | 0～200 | 0～400 | 0～800 | A |
| VSN | Secondary rated output voltage | 4 | V | ||
| VC | The Power Supply Voltage | ±12～15(±5%) | V | ||
| IC | Current Consumption | ＜25 | mA | ||
| Vd | Insulation Voltage | Between primary and secondary circuits:2.5kV/50Hz/1min | |||
| εL | Linearity | ＜1 | %FS | ||
| X | Precision | TA =25℃:≤±1 | % | ||
| V0 | Offset Voltage | TA =25℃:≤±25 | mV | ||
| VOM | Magnetic Offset Voltage | IP =0 after 3*IPN:≤±10 | mV | ||
| VOT | Offset voltage temperature drift | IP =0 TA =-40～+80℃:≤±1 | mV/℃ | ||
| Tr | Response time | ≤7 | μS | ||
| f | Bandwidth(-3dB) | DC～20 | kHz | ||
| TA | Working Temperature | -40～+80 | ℃ | ||
| TS | Storage Temperature | -45～+85 | ℃ | ||
| RL | Load Resistance | TA =25℃:≥10 | kΩ | ||
Note:
GIN:Amplitude adjustment
The sensor should be wired correctly, otherwise it may damage the internal components of the sensor
Dynamic performance (DI/DT and response time) is best when the input current row is fully filled with the primary perforation
